PROPULSION & CHASSIS ENGINEERING

Experience Mid-Engine Dominance

Fewer kilograms, optimal mid-engine weight balance, and naturally aspirated V8 responsiveness—engineered for total command on the road and circuit.

0HPMax Power (495 HP / 369 kW)@ 6,450 RPM w/ Performance Exhaust
0.0s0-60 mph (Z51 Package)Sub-100ms Dual-Clutch Shift Time
0mphTop Track Speed312 km/h Aerodynamic Top End
MID-ENGINE ARCHITECTURE // REVOLUTION

What's New for the C8 Corvette Stingray?

For over six decades, the Corvette stood as the world's foremost front-engine American sports car icon. With the eighth-generation C8, Chevrolet executed an uncompromising engineering revolution—relocating the beating heart of the powertrain directly behind the driver's seat. This mid-engine layout shifts 60% of the vehicle's mass over the rear drive wheels, fundamentally transforming weight transfer, directional agility, and driver feedback. By concentrating mass at the vehicle's center, the polar moment of inertia decreases dramatically, allowing the chassis to rotate into high-speed apexes with surgical precision.

Positioned mere inches behind the bulkhead sits the naturally aspirated 6.2L Small Block LT2 V8. Producing 495 horsepower and 470 lb-ft of torque, it delivers instant, linear throttle modulation without the lag of turbochargers. The engine incorporates a race-derived low-profile dry-sump lubrication system engineered with three scavenge pumps, ensuring uninterrupted oil pressure during sustained 1.25G lateral cornering loads. Coupled exclusively with the Tremec TR-9080 8-speed dual-clutch transmission, gear shifts fire off in under 100 milliseconds, connecting driver and asphalt like never before.

[ 40:60 WEIGHT DISTRIBUTION ][ 1.25G LATERAL CORNERING ][ DRY-SUMP OIL SYSTEM ]

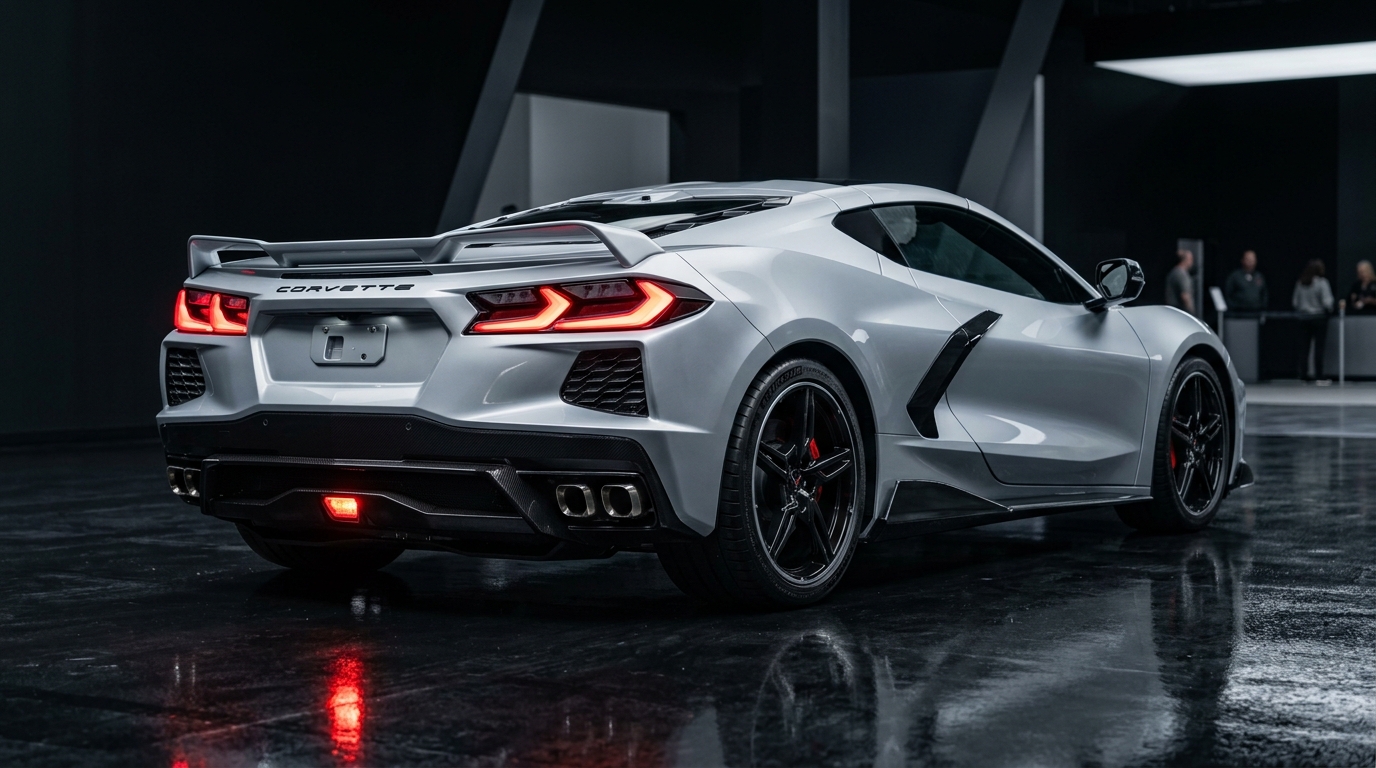

Chevrolet Corvette C8 Stingray Sculpted Rear Angle
Z51 Rear Aero & Quad Exhaust
400 LBS DOWNFORCE
ENGINEERING DATA // BENCHMARKS

Technical Specs

Engine TypeNaturally Aspirated 6.2L Small Block LT2 V8
Displacement6,162 cc (376 cu. in.)
Horsepower495 hp @ 6,450 rpm (w/ Performance Exhaust)
Torque470 lb-ft @ 5,150 rpm
Bore & Stroke103.25 mm x 92.0 mm (4.06 x 3.62 in)
Compression Ratio11.5 : 1
LubricationDry-sump system w/ 3 scavenge pumps
ValvetrainPushrod 16-valve w/ Variable Valve Timing
DIMENSIONAL BLUEPRINT // TOP-DOWN PROJECTIONAERODYNAMICS CFD VERIFIED
LT2 V8SCALE: 1:25 // C8 STINGRAY CAD
Overall Width76.1 in1,933 mm
Wheelbase107.2 in2,722 mm
Overall Length182.3 in4,630 mm
Overall Height48.6 in1,234 mm
TRACK-PROVEN HARDWARE

C8 Stingray Highlights

// 01

Weight Optimization

40:60 Balance

Die-cast aluminum backbone spaceframe engineered with carbon-fiber rear crossmember, maximizing structural rigidity while placing 60% of mass over drive wheels.

// 02

Competition GT2 Seats

Carbon & Mulan Leather

High-wear carbon fiber bolstered seats wrapped in genuine Mulan leather with heating, cooling, and aggressive lateral shoulder supports for sustained track grip.

// 03

Magnetic Ride 4.0

1,000 Hz Damper Scan

Wheel accelerometers reading road irregularities every millisecond, electromagnetically stiffening or softening damper fluid within 10ms for razor-sharp apex composure.

// 04

Staggered Forged Wheels

19-inch Front / 20-inch Rear

Monoblock forged aluminum 5-trident wheels wrapped in ultra-high performance Michelin Pilot Sport 4S tires providing 1.25G lateral threshold cornering.

Chevrolet Corvette C8 Stingray Coupe in Torch Red
HERITAGE & INNOVATION

Timeless design, contemporary interpretation.

The silhouette of the eighth-generation Corvette is unmistakable: athletic surfaces inspired by supersonic aerospace combat aircraft, functional aerodynamics, and mid-engine architecture that carries forward the legacy of Le Mans champions.
